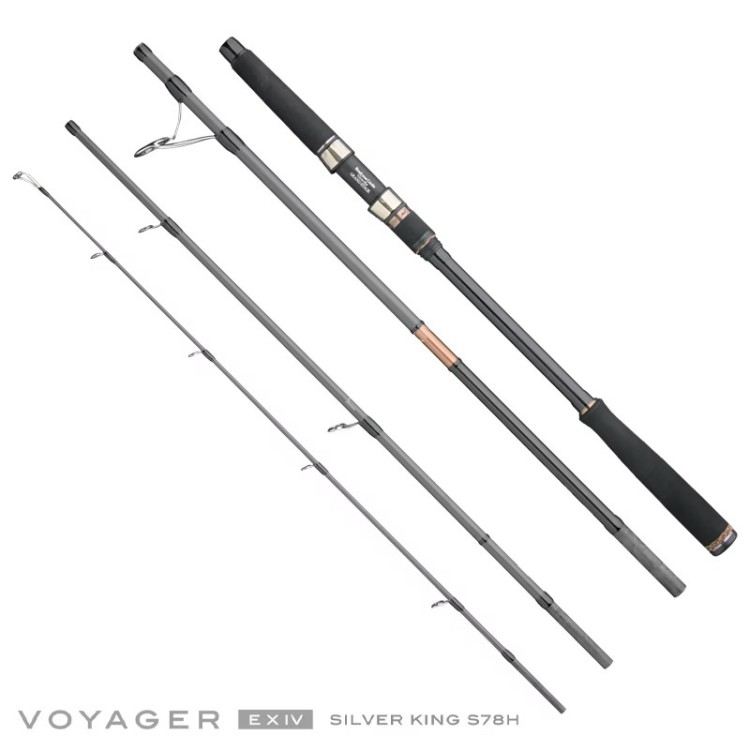

APIA Voyager Ex IV Silver King S78H

The VOYAGER EX IV is a four-piece pack rod developed as the trusted companion of Masanori Muraoka, an angler who fishes not only throughout Japan but across the globe. All models in the series are designed as true travel rods without compromise.

Equipped with ultra-precise NANO JOINT technology, the VOYAGER EX IV achieves a level of weight, action, balance, and strength comparable to conventional two-piece rods. Whether running and gunning around harbors by bike or bicycle, or challenging dream expedition destinations overseas, this is a pack rod you can rely on with complete confidence. Designed to deliver lures accurately to target spots and impart precise, intentional action, the VOYAGER EX IV is APIA’s multi-piece series that perfectly balances sensitivity and toughness through the use of advanced materials.

BLANK

TORAYCA® 3rd Generation Carbon
Equipped with TORAYCA® 3rd generation carbon M40X and T1100G

The crisp, sharp feel of the rod is derived from the characteristics of M40X, a 40-ton high-modulus carbon. Its instantaneous response improves hook-setting accuracy and enables maximum casting distance with less effort than before. Exceptional sensitivity delivers subtle bite information directly to the angler’s hand, while unmatched controllability translates directly into better results.

Supporting this performance is T1100G, a 33-ton medium-modulus carbon that enhances overall usability. By assisting smooth bending, it further refines the rod’s action. During casting and fighting, the blank loads deeply and responds powerfully, maintaining strength while remaining supple enough to handle aggressive runs with confidence.

TORAYCA® – Key Materials

M40X
Extraordinary Sensitivity & Control with Zero Wobble
A 40-ton high-modulus carbon fiber developed for next-generation aerospace applications. While maintaining the same modulus as M40J, compressive strength has been improved by 30%. This material contributes to faster casting speed, superior repulsion, and precise control. Uses #2574 Nanoalloy resin.

T1100G
World-Class Strength and Power
A 33-ton medium-modulus carbon fiber developed for advanced aerospace, F1, and next-generation space applications. It offers one of the highest tensile strengths available among carbon fibers today. In addition to strength, it enhances rod speed during casting and produces smooth, progressive bending. Uses #2574 Nanoalloy resin.

JOINT

NANO JOINT – Advanced APIA Technology

The primary weakness of traditional multi-piece rods has always been the joints: increased weight, top-heavy balance, stiffness at connection points, reduced strength, and the inconvenience of loosening during use.

APIA’s proprietary NANO JOINT, developed using NANOALLOY® technology, overcomes these issues. The put-in type NANO JOINT delivers exceptional strength, light weight, excellent balance, and a seamless bending curve that surpasses conventional spigot joints. With ultra-precision grinding achieving a taper tolerance of just 0.002–0.005 mm, joint loosening during fishing is significantly reduced.

Notes:

• NANO JOINTs are finished with ultra-high precision; use as is without modification.
• Use the included joint assist sheet when assembling or disassembling the rod.
• If a joint becomes stuck, cooling the joint area with ice will help contract the carbon and allow easier separation.

EXTERIOR

SHIELD TECH

To protect the blank from minor scratches that occur during frequent travel and expedition use, a special protective tape known as Shield Tech is applied.

WARRANTY

APIA Premium Warranty

For up to five years after the product is discontinued, repairs are available an unlimited number of times with a fixed service fee.

Please note:

• The premium warranty is invalid if the warranty card is lost.
• If the rod becomes wet, wipe it dry promptly with a dry towel.
• Storing the rod while wet or in hot, humid conditions may cause blistering of the painted surface.
