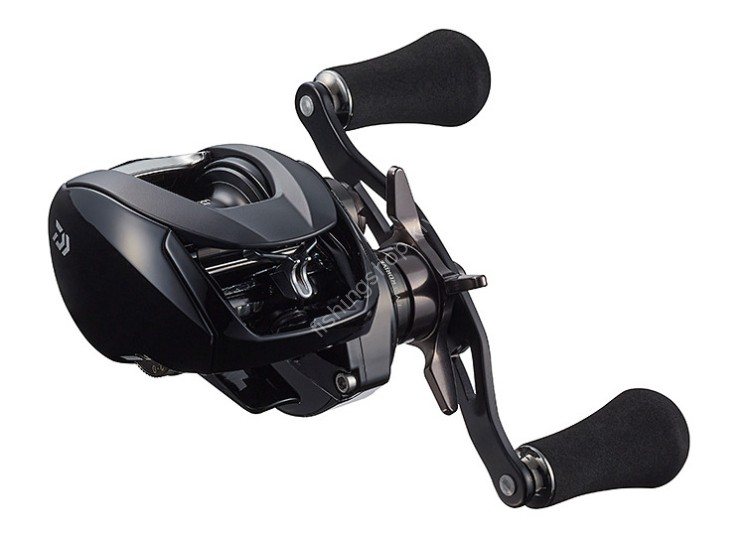

DAIWA Zillion TW HD 1000HL

The new HYPERDRIVE DIGIGEAR uses high-strength brass for the drive gear and highly corrosion-resistant copper alloy for the pinion gear, realizing strong and smooth rotation, and the HYPER ARMED HOUSING (FULL AL) realizes a compact yet strong body rigidity. The newly developed Φ34mm G1 duralumin ultra-high precision MAG-Z BOOST spool is installed to maximize long casting performance.

HYPERDRIVE DESIGN
The next-generation design concept for bait (double-axis) reels, which significantly improves the standard of all basic performance with the aim of maintaining high initial performance for a long time. The Hyper Drive Design is composed of up to four technologies. Hyper Double Support, which requires the Hyper Drive Digigear to maintain smooth rotation for a long time and assists the gear drive to provide strong and light winding. Hyper Armed Housing, which strongly supports the internal structure and is less likely to bend or distort. Hyper Tough Clutch with an insulating structure that continues to operate even in harsh locations and drastically reduces adhesion due to salt. The synergistic effect of these technologies continues to provide stable performance in any field.

HYPERDRIVE DIGIGEAR
A newly designed gear system that pursues sustained strong and smooth rotation. This is DAIWA's unique technology that achieves an increased meshing rate without reducing the module (size) of the gear teeth, which directly affects durability, allowing the initial smoothness to be maintained for a long time.

HYPER DOUBLE SUPPORT
A drive support system that achieves sustained smoothness and strong, light winding. Both ends of the pinion gear are supported with two ball bearings with high precision, allowing for strong, light winding even under load without attenuating the input from the handle.

HYPER ARMED HOUSING (FULL AL)
A housing system that firmly supports the internal structure with high rigidity and precision, producing a precise winding feel and power. The use of metal materials for the frame, which is the essential condition, makes it possible to continue to exert basic performance for an even longer period of time by combining it with side plates and set plates.

HYPER TOUGH CLUTCH
Not only does this clutch system have crisp on/off performance that continues to slide thousands or tens of thousands of times, but it also has extremely few problems even in highly saline seawater. This cutting-edge insulation structure has already reduced the number of repairs due to sticking in harsh saltwater environments by 99% compared to our previous model.

MAG-Z BOOST
The BOOST SYSTEM brings out the long-distance casting performance of MAGFORCE-Z to the limit.
MAG-Z BOOST is a distance-oriented setting that brings out the long-distance casting performance of MAGFORCE-Z to the limit. MAGFORCE-Z is not suitable for lightweight lures because it uses centrifugal force to activate the inductor rotor. On the other hand, it is ideal for long-distance casting of medium and heavy lures, and the casting distance increases with the input. And then the BOOST revolution. After avoiding the backlash zone, it instantly returns one step, achieving maximum casting distance with a smooth trajectory from the middle of the cast to just before landing on the water.

TWS (T-WING SYSTEM)
TWS has succeeded in significantly reducing the resistance of the line guide close to the spool, where the spool rotation speed is the highest. By reducing the resistance to the casting distance, not only is the casting distance and controllability improved, but the fall is also faster and backlash is reduced. This has realized the possibility of a new level wind not only when winding, but also when casting.

UTD (Ultimate Tournament Drag)
This is a Daiwa drag system that eliminates the initial bite when the drag first starts working, achieving a smooth drag without stickiness (unevenness), while also providing maximum drag power the more you tighten it.

ZERO SHAFT
The spool is only supported by the bottom bracket. The shaftless design eliminates excess resistance and provides ideal spool rotation.
In other words, it is the key to a high-output engine that prioritizes casting performance.

Zero Adjuster
First, adjust the "zero adjuster" and set the "zero spool rattle". Thanks to the evolution of the magnetic brake, it is now possible to control all lures with just the mag dial.
The "zero adjuster" is a mechanism that allows you to enjoy fishing comfortably without malfunctions while fishing by adjusting it to the "zero setting" before starting fishing.
*The "zero spool rattle" setting is the setting that does not push the spool while leaving a slight rattle (about 0.2 mm).

MAGFORCE-Z Boost is a distance-focused setting that maximizes the long-distance casting performance of MAGFORCE-Z.
Since MAGFORCE-Z uses centrifugal force to activate the inductor rotor, it is not suitable for lightweight lures.
However, it is ideal for long-distance casting of medium to heavy lures, and the more input you put into it, the greater the distance you can cast.
And that's where the BOOST revolution comes in.
By avoiding the backlash zone and instantly returning one step, you can achieve maximum casting distance with a smooth trajectory from the middle of the cast to just before it hits the water.

G1 duralumin spool
G1 duralumin is a special aluminum alloy that is twice as strong as magnesium and 1.3 times as strong as extra-super duralumin. This ultra-lightweight material with excellent rigidity is the highest grade of lightweight alloy, also used in aircraft structural materials and precision instruments. To maintain the same strength, it is possible to maintain sufficient strength by simply thinning the spool's winding surface without blanking, in order to achieve an overwhelmingly lightweight feel. The high rotation response brought about by the lightness and the unparalleled precision of rotation due to the high rigidity are unmatched.

Drag pull click
Drag pull click is a structure that makes a clicking sound when the line is pulled out during a fight with a fish, so that you can tell that the drag is working by the sound.
