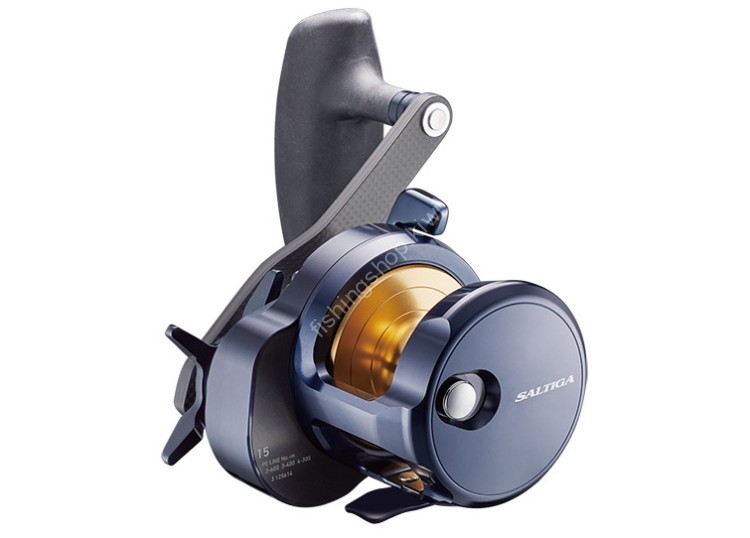

DAIWA 22 Saltiga 15H-SJ

Three features are worth mentioning
- Rotation performance: HYPERDRIVE DESIGN.
Powerful winding performance
- Operation performance: A change in thinking from "gripping" to "finger grip".
Thumb holding frame
- Durability performance: Anode protection installed.

HYPERDRIVE DESIGN
The next-generation design concept for bait (double-axis) reels, which significantly improves the standard of all basic performance with the aim of maintaining high initial performance for a long time. The Hyper Drive Design is composed of up to four technologies. Hyper Double Support, which requires the Hyper Drive Digigear to maintain smooth rotation for a long time and assists the gear drive to provide strong and light winding. Hyper Armed Housing, which strongly supports the internal structure and is less likely to bend or distort. Hyper Tough Clutch with an insulating structure that continues to operate even in harsh locations and drastically reduces adhesion due to salt. The synergistic effect of these technologies continues to provide stable performance in any field.

HYPERDRIVE DIGIGEAR
A newly designed gear system that pursues sustained strong and smooth rotation. This is DAIWA's unique technology that achieves an increased meshing rate without reducing the module (size) of the gear teeth, which directly affects durability, allowing the initial smoothness to be maintained for a long time.

HYPER DOUBLE SUPPORT
A drive support system that achieves sustained smoothness and strong, light winding. Both ends of the pinion gear are supported with two ball bearings with high precision, allowing for strong, light winding even under load without attenuating the input from the handle.

HYPER ARMED HOUSING (FULL AL)
A housing system that firmly supports the internal structure with high rigidity and precision, producing a precise winding feel and power. The use of metal materials for the frame, which is the key, is a prerequisite, and in combination with the side plate and set plate, it makes it possible to continue to demonstrate basic performance for even longer.
In this series, aluminum alloy is used for the frame, gear side plate (handle side), and set plate. It is a full metal housing specification that realizes unparalleled strength.

HYPER TOUGH CLUTCH
Not only does this clutch system have crisp on/off performance that continues to slide thousands or tens of thousands of times, but it also has extremely few problems even in saltwater with high salinity. This cutting-edge insulation structure has already reduced the number of repairs due to sticking in harsh saltwater environments by 99% compared to our previous model.

MAGSEALED BALL BEARING
DAIWA has succeeded in turning ball bearings themselves into mag-shields for the first time in the world using its unique technology. The magnetic liquid barrier prevents water and foreign matter from entering the ball bearing, and while maintaining the original rotational performance of the ball bearing, it significantly reduces rust, salt buildup, and abnormal noise.

ATD
The ATD operates smoothly and continues to work smoothly in response to the pull of the fish. It pursues smooth start and tracking, allowing you to concentrate on the fight without worrying about the drag setting.

Anode protection
"Unbreakable durability that will not decay"
Anode protection is a technology that reduces metal corrosion. Also called a sacrificial anode, the anode (zinc) takes on the corrosion instead of the metal corroding.
By incorporating this technology into the reel, we aimed to concentrate corrosion on the anode plate and maintain durability. This is the first time this feature has been installed in a Daiwa reel.

Thumb holding frame
"Change the idea from gripping to finger gripping"
We analyzed the gripping style of various anglers and pursued a shape that fits better in the hand. We developed a thumb holding frame that aims for a thumb rest position that is easy to thumb and reduces the risk of your fingers slipping out.
We also took into consideration the thumb position after the clutch is released, significantly improving comfort.
A completely new palming experience that will greatly change the concept of "gripping".

75-85mm AL crank handle arm
"Strong and tough AL handle arm"
75-85mm AL crank handle with a handle arm length setting that is easy to use when targeting bluefish with a normal one-pitch jerk.

85-95mm carbon crank handle arm
"High sensitivity and lightweight carbon handle arm"
22 SALTIGA15-SJ series with carbon crank handle arm. High sensitivity and lightweight to improve tackle balance.
High rigidity achieved by 5mm plate thickness. It is possible to reel in without bending even with powerful jerks or fighting with large fish.

Spool change
"Easy and convenient spool replacement function"
Uses a three-point support structure with side plate screws.
By preparing a spare spool, you can instantly replace the spool in case of unexpected breakage or depending on the sea conditions.
The gearbox cover can be removed by removing the three side plate screws on the gearbox side with the included spool replacement wrench (T8).
The side plate screws have a fall-proof structure that prevents them from coming off even when completely loosened, preventing the trouble of losing them.

Large diameter Φ52mm spool
"Optimal spool size design for bait jigging"
Φ52mm spool with 6% larger diameter than conventional models.
Proud of PE4-300m, it has the best line capacity in its class.
The spool shape achieves the best balance, even taking into account the change in winding speed caused by line release. Because the amount of change in winding is optimal, it demonstrates proper drag performance and contributes to light winding and winding power for closing the gap.

Drag Click
"Sound supports close battles"
When fighting large fish, precise drag settings are necessary.
When a fish suddenly charges, being able to hear the drag action gives anglers a big advantage.

85mm T-Shape Power Knob
"Overwhelming grip"
A T-shape power knob that provides comfortable operability when jerking and reeling, with a comfortable feel when gripping and a variety of thumb placements.
The shaft is thick enough to make it easier to pinch and jerk when doing one-pitch fishing. When lifting for slow jigging, you can grip it firmly to create a stable jerk.
It can be used for a wide range of purposes, from coastal jigging to slow jigging.

Reel Fit
The 15-SJ series is the only one that has special specifications in addition to the handle specifications. This is the optimization of the reel body position for slow jigging.
What did we do? The reel body position has been slid just 1mm closer to the tip side than the standard model SALTIGA15.

Spool
15/15L:
Deep spool specification compatible with thick PE thread
Realizes large capacity of PE4-300m and conventional SALTIGA35N size.
Range is within reach of mid-deep sea games with PE1.5-800m.
Compatible with 15S spool.

Spool lock
"Line cutting function that is useful in jigging scenes"
A mechanism that completely fixes the spool and locks the spool from reversing.
When trying to remove a snag, pulling too hard can damage not only the line but also the gear and ball bearings. However, by using the spool lock mechanism, it is possible to separate the spool and pinion gear, allowing you to cut without damaging the gear or ball bearings.
It's easy to use.
1. Switch the spool lock lever to ON.
2. Turn the clutch OFF.
3. In this state, apply tension for the first time and pull to cut the line.
The key is to separate the spool and pinion gear.
An essential function that is safe, secure, and quick to respond.
