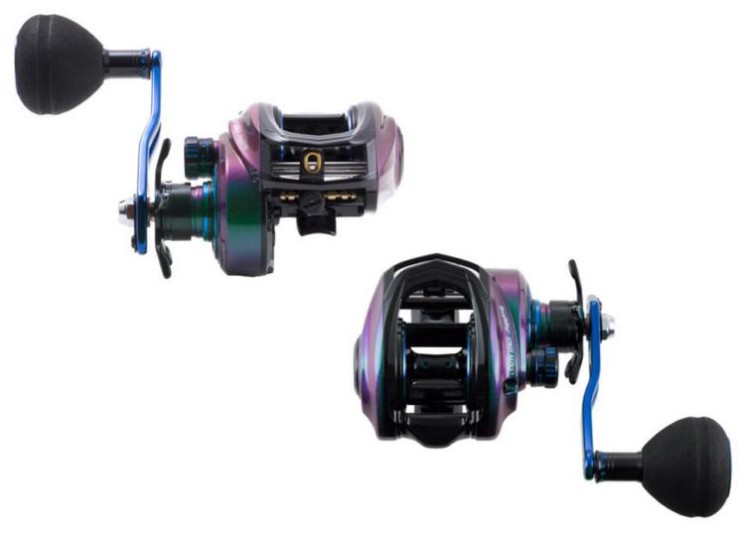

ABU GARCIA Salty Stage Jigging

Compact size coastal jigging model equipped with Salt Shield Pinion BB and Super Free HPCR-BB
Large diameter brass gear, drag max 14kg, compact yet equipped with Power Stack carbon drag system for large fish. Bait reel for coastal jigging.

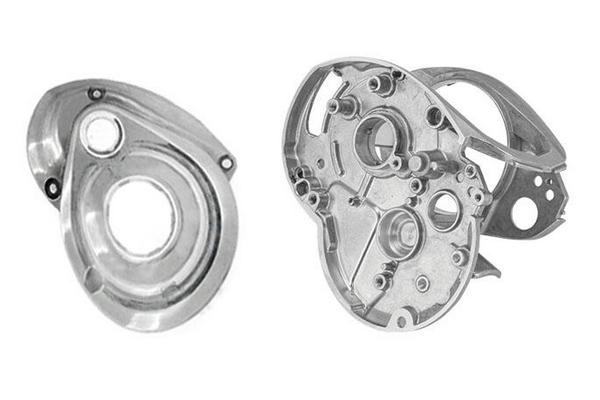

X-CRAFTIC Frame & Crank Side Plate
The aluminum frame is designed to be lightweight without compromising strength.
The material is designed for tough use in saltwater.
The side plate is also made of aluminum and is designed to be sturdy, allowing for reliable reeling.

F-mode brake system
Springs are used in the six centrifugal brakes.
The brakes are not applied when falling, allowing for quick falling, and the spring mechanism applies the brakes in an emergency, such as when pitching a jig underhand.

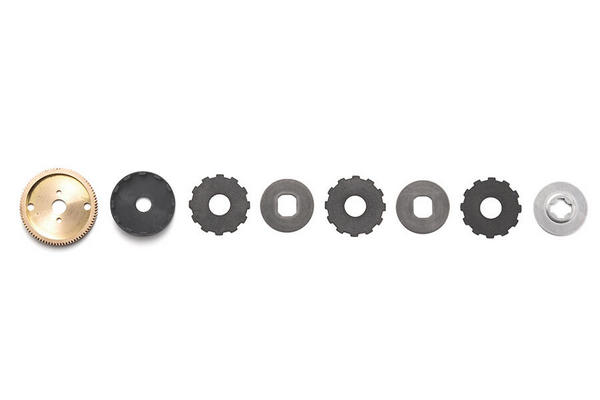

Power Stack Carbon Matrix Drag
Normally, when there are three drag washers, only three surfaces on one side are effective, but by making the outer diameter of the drag washer uneven, five surfaces are effective, one more than usual.
Not only does it have a maximum drag force of 14kg, it also has excellent sliding performance.

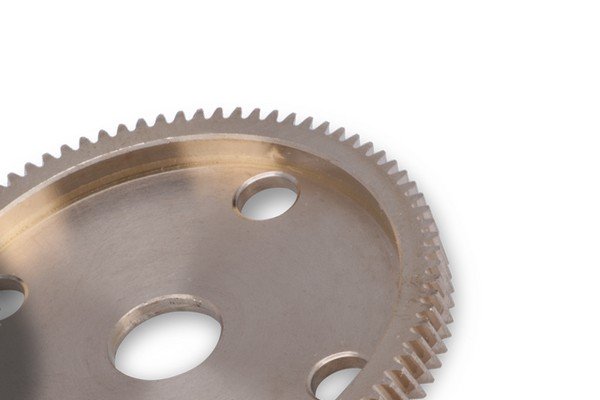

D2 Gear Design Large Diameter Brass Gear
Equipped with a strong large diameter brass gear, it has increased durability and strength, and the strong gear allows you to fight with big fish with confidence.

Dura Clutch
The operating parts have been thoroughly redesigned to make the clutch easier to disengage and more durable.

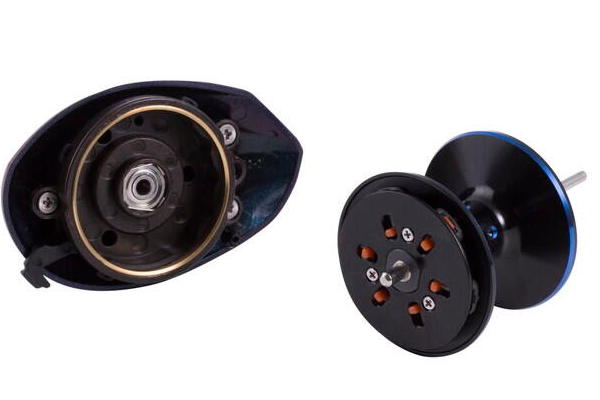

φ37.5mm aluminum machine cut spool
Considering various line uses, a guide line for winding 1/4, 1/3, or 1/2 of the wound amount is machined into the side of the spool.
It makes it easy to consider the guide amount of winding, which can be a hassle.
It is possible to just fit the appropriate line capacity, making it possible to maximize the benefits of the maximum spool diameter.

Recessed reel foot
The split reel foot pushes the spool downward, making it possible to achieve a lower profile.

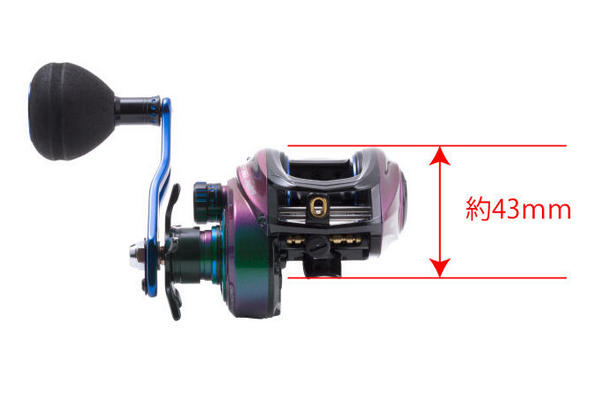

The height from the foot is approximately 43 mm. It provides comfortable palming performance.

60-70m 2-position single handle arm
A 4mm thick 2-position single handle arm that can be used in either 60mm or 70mm length depending on the weight of the jig.

Big Round EVA Knob
Large EVA round knob for powerful and speedy winding.

Salt Shield TM Pinion Bearing
By adopting a newly developed ball bearing with a water-repellent coating applied to the entire inside and outside, the salt jamming phenomenon that causes abnormal rotation noise has been greatly reduced.
We have succeeded in greatly improving the rotation feel and durability.
We adopted it on the pinion gear part, which is the part of a spinning reel that is most likely to retain salt crystals.

Super Free HPCR-BB
Reducing the size of ball bearings is a way to reduce resistance, but it makes them weaker when it comes to load bearing. Abu Garcia has redesigned the ball track groove of the bearing and succeeded in developing a ball bearing with low rotational resistance of the conventional size. Low trajectory pitching and long distance casting performance have been improved.
