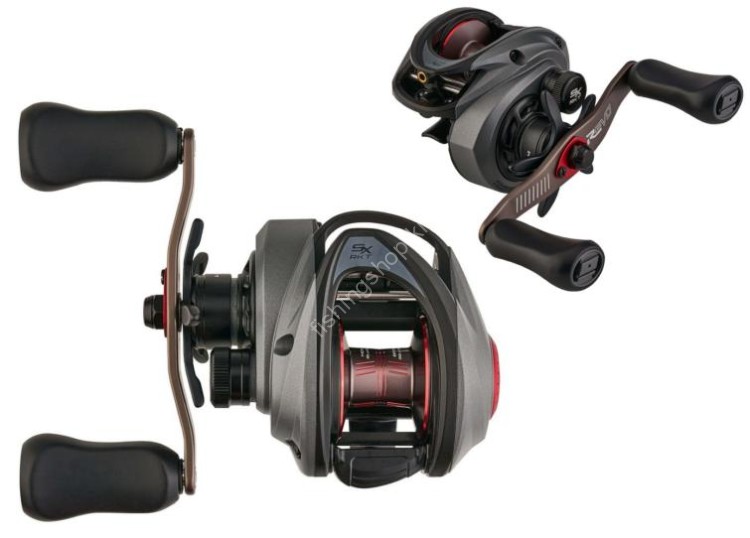

ABU GARCIA Revo 5 SX-Rocket-L

Equipped with 9+1 bearings. DuraMetal frame and crank side plate that can withstand rocket gears.
35mm spool, but with an ergonomic design that fits comfortably in your hand. The offset thumb rest makes it easy to grip deeply during a fight, allowing for powerful fighting!
IVCB6 centrifugal brake system that works well with the spool.

Ergonomic Design
By offsetting the thumb rest toward the handle arm, you can grip deeper and stronger during a fight, preventing the dispersion of force and achieving strong and stable winding. The clutch bar has an asymmetrical design to prevent accidental interference with the palm of the hand and "pushing" when palming.

High-strength durametal frame and crank side plates
The aluminum alloy durametal frame and crank side plates provide the toughest and most precise gearing support, making them ideal for big bait fishing in FW and SW, or when the stiffest fishing is required.

IVCB6 Brake System
Equipped with the IVCB6 brake system, which is compatible with the newly developed 35mm spool. With a single adjustment dial on the outside, it can be easily adjusted to suit various conditions such as tailwinds and headwinds.

Power Stack Carbon Matrix Drag
By using a large carbon washer with a key on the outer diameter, it is possible to enlarge the drag friction surface. This washer configuration provides three friction surfaces, achieving not only maximum drag force, but also smooth start-up performance and durability.

Duragear Gear System
Equipped with a strong large diameter brass gear. With increased durability and strength, the strong gear allows you to fight with big fish with confidence.

95mm crank-shaped handle & large handle knob
Equipped with a large handle knob and a 95mm crank-shaped 3mm thick aluminum handle that allows for powerful winding and forceful fighting with big fish.

Cam lock lever
The cam lock lever for opening the palm side plate is located at the bottom of the side plate. When the cam lock lever is in the "open" position, the claw of the lever protrudes, so it is designed to prevent you from forgetting to tighten the lever.

Pinion support structure
The powerful winding force of the handle is transmitted in the order of drive gear → pinion gear → spool. Even the slightest distortion in each part of this rotation transmission will have a negative effect on the rotation.
The pinion support structure reliably supports the outer part of the pinion gear with the crank side plate via a ball bearing. This structure has achieved highly efficient winding and a significant improvement in gear feel. Furthermore, when casting, optimal spool free and castability have been achieved by maintaining a constant appropriate clearance between the inner surface of the pinion gear and the rotating spool shaft.

35mm diameter spool
Outer diameter 35mm, 22mm width spool. 16lb-115m, PE3-120m, wide enough for a wide range of fishing needs, from cranking to cover fishing to big bait fishing.
