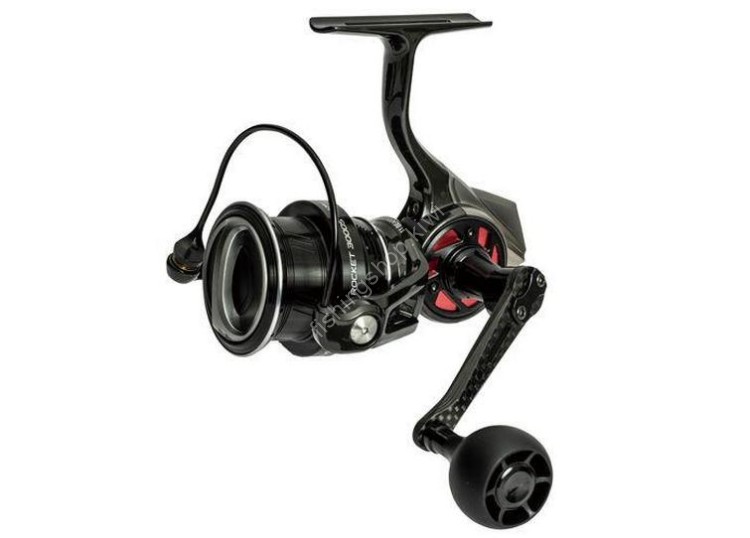

ABU GARCIA Revo SP Rocket 3000S

A rocket gear ratio model with a gear ratio of over 7! Maximum 124cm per turn! (No. 4000). Furthermore, by enlarging the drive gear diameter, durability has been greatly improved!

Salt Shield TM Bearings
By adopting a newly developed ball bearing with a water-repellent coating applied to the entire inside and outside, the salt jamming phenomenon that causes abnormal rotation noise is drastically reduced.
We have succeeded in significantly improving the rotation feel and durability.

HPCR Bearings
The bearings made of high-performance corrosion-resistant material improve durability, smoothness, and corrosion resistance.
It improves performance in all fishing situations.

Compact asymmetrical body
The newly developed body has completely different appearances on the left and right sides. In spinning reels, the main gear that is connected to the handle shaft and rotates is only on the left side. The design is focused on simply covering the main gear, and has a shape that thoroughly eliminates unnecessary space. As a result, a lightweight and compact body has been achieved without reducing the thickness or strength of the material.

Large diameter drive gear
Compared to the drive gears installed in conventional spinning reels, the diameter is up to 117% (2500-4000 numbers). This not only improves durability, but also enables torqueful winding.

AM Gearing™ System
Abu Garcia's unique manufacturing method uses precision machined high-strength aluminum gears to achieve unprecedented smoothness and durability.

COG Gear Design
Abu Garcia's unique computer analysis technology optimizes the gear tooth shape. Demonstrates ultimate smoothness in any fishing situation. Improved durability, smoothness, and corrosion resistance. Enhances performance in any fishing situation.

Friction-Free
A new structure that makes winding the handle lighter by improving the support structure of the main shaft. Even large fish can be actively wound up with "one more turn".
In the conventional structure, the main shaft moved back and forth while rubbing against the inner surface of the pinion gear that turns the rotor, and this "rubbing" friction made winding heavy.
The support structure of the main shaft that moves the spool back and forth has been significantly improved, and the main shaft is supported on the reel body with a high-sliding bush. There is a gap between the rotating pinion gear and the main shaft that moves back and forth, and by eliminating contact friction on the inside of the gear part (friction-free), winding is made lighter.

One-piece DURAMETAL™ integrated body
We have succeeded in integrating the body cover (side plate) that was used in conventional reels into the body. By optimizing the size and weight of the entire body and adopting a one-piece DuraMetal™ (aluminum alloy) body, the drive gear is supported by a single part, which contributes to improving the optimal gear feeling without the axis center being misaligned.

C6 V-Rotor
The newly developed C6 V-Rotor achieves light weight and low moment of inertia without sacrificing strength thanks to its small diameter arbor and V-shaped wings. Therefore, the rotation "smoothly rotates and stops abruptly".

V-spool design
The skirt part of the spool is mainly used to prevent the loose thread from wrapping around the spool shaft when the thread wound on the spool becomes loose. The new V-spool design achieves significant weight reduction by making this skirt part thinner.

Aluminum Uniflow Veil
Lightweight by using high-strength aluminum alloy. By smoothing the shape of the veil joint, troubles such as thread tangling around the veil can be drastically reduced.

Rocket Line Management SystemTM
1. Spool design - Abu Garcia's unique rocket spool lip releases the line from the spool more smoothly and evenly.
2. Oscillation system - The slow oscillation system allows the line to be wound onto the spool more smoothly and evenly at the optimal winding angle.
3. Veil - The unique bail opening angle of the Revo® series allows the line to be controlled into an optimal line loop as it is released from the spool lip, allowing the line to pass smoothly through the first stripping guide of the rod.

Carbon Matrix Drag
Abu Garcia's unique carbon matrix drag washer allows for higher drag force while maintaining smooth performance over a wide range.

Duracarbon ™ Handle
By layering high-elasticity carbon material, it contributes to high strength, light weight and improved sensitivity.

2WAY DRAG™
By changing the assembly order of the drag washers according to the type of fishing and fishing method, two settings, "Light" and "Tough", are possible.

New line clip for 30lb shock leader
By making the shape that holds the line a two-stage shape, it securely clips thick leaders and prevents them from unraveling from the spool during storage and transportation.

Sinker keeper included
Can be used as a sinker for down shot rigs, or as a keeper for jig heads, spoons, and other small lures.

Always-ON Instant Anti-Reverse
The ON/OFF switching function of the instant anti-reverse has been removed to improve the reliability of the stopper and prevent misoperation. The new clutch improves the anti-reverse performance during winter fishing.

Detailed Features:
- FW/SW compatible
- 10 stainless steel HPCR ball bearings + 1 roller bearing, Salt Shield™ ball bearings for the inner pinion gear and line roller
Compact asymmetrical body
- C6 V-Rotor™ with light weight and low moment of inertia
- Lightweight aluminum V-spool design
- Friction-free main shaft (super duralumin) support structure
- AM gear system
- COG design
- Water Shield Carbon Matrix Drag System
- One-piece DuraMetal body
- Rocket line management
- 30lb leader compatible, new line clip
- Duracarbon handle
- Always-ON Instant Anti-Reverse
- Sinker keeper included
