DAIICHISEIKO Ponzuke Reel Seat

Easy Clip-On Installation!

Enhances your line spooling experience when used with the High-Speed Recycler.

SPECIFICATIONS

• Size (folded): 270 × 103 × 58 mm
• Weight: 334 g
• Max Clamp Width: 43 mm
• Compatible Models: High-Speed Recycler, High-Speed Recycler 2.0
• Made in Japan (some parts made in China)

FEATURES

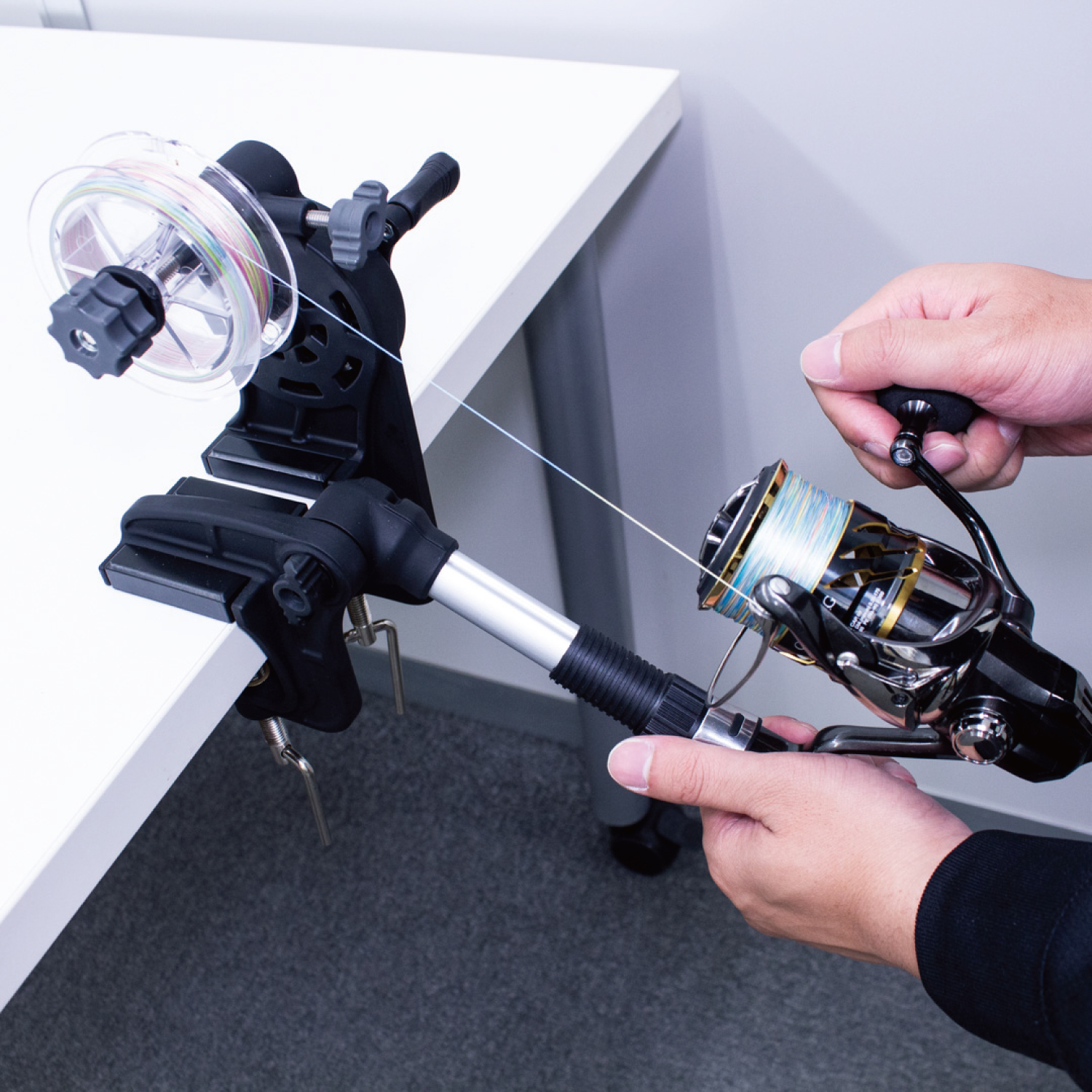

1. Secure Reel Mounting

Firmly holds your reel in place, making spooling and rewinding smooth and easy.

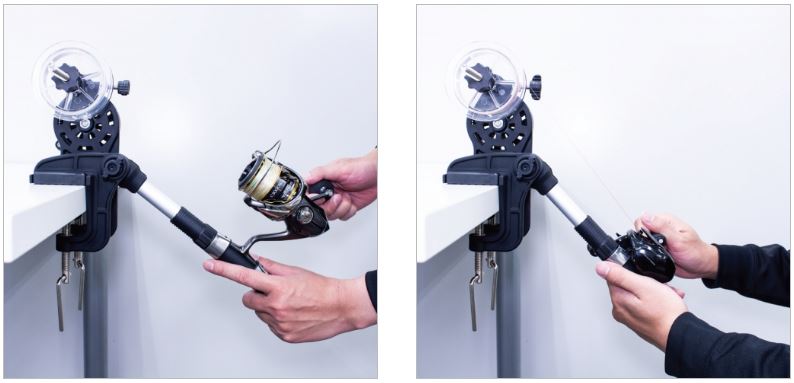

2. Adjustable Reel Seat Angle

The seat angle can be adjusted to match reel size, reducing awkward winding.
Compatible with both spinning and baitcasting reels.

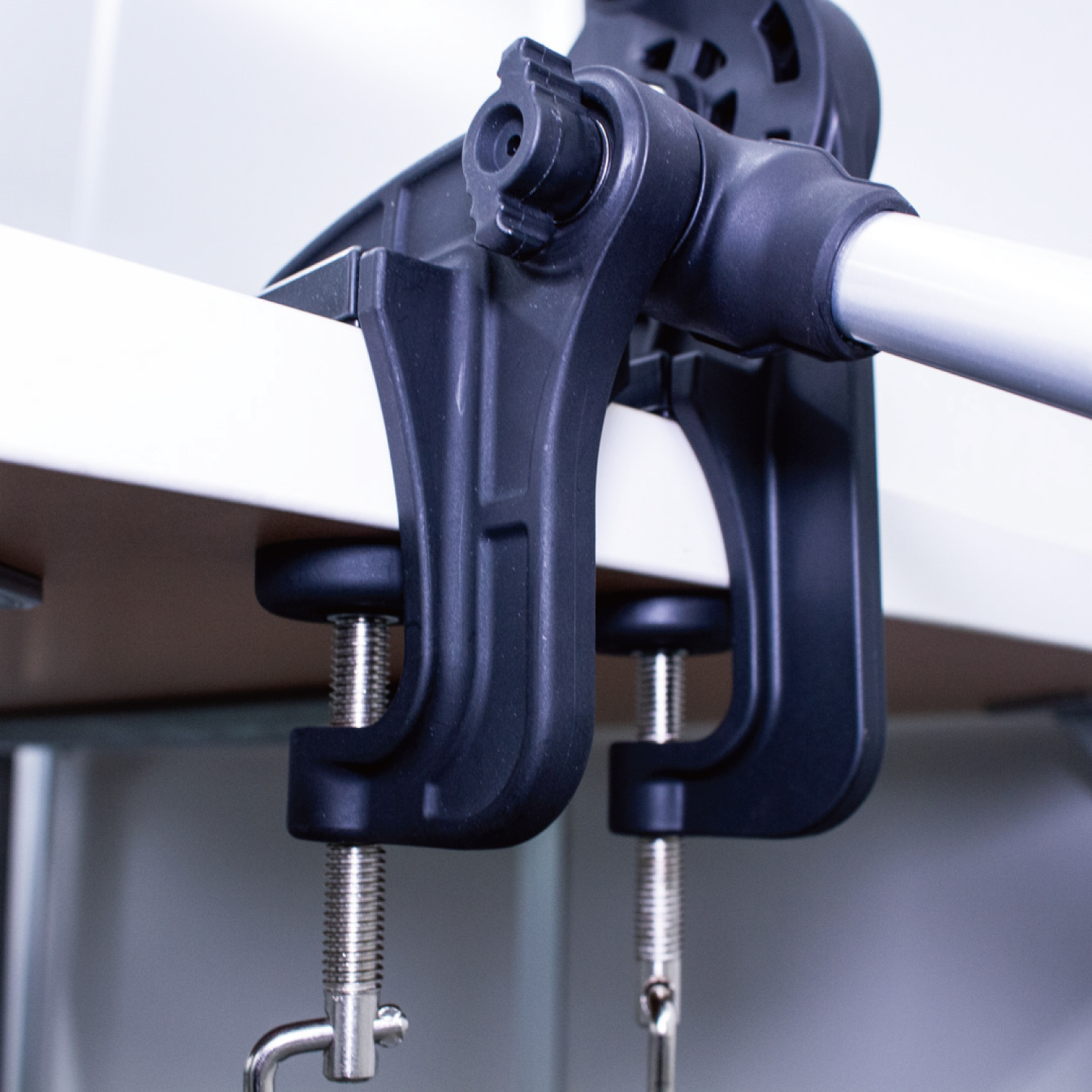

3. Simple Clamp-On Installation

Attaches quickly with a clamp — tool-free, no hassle.

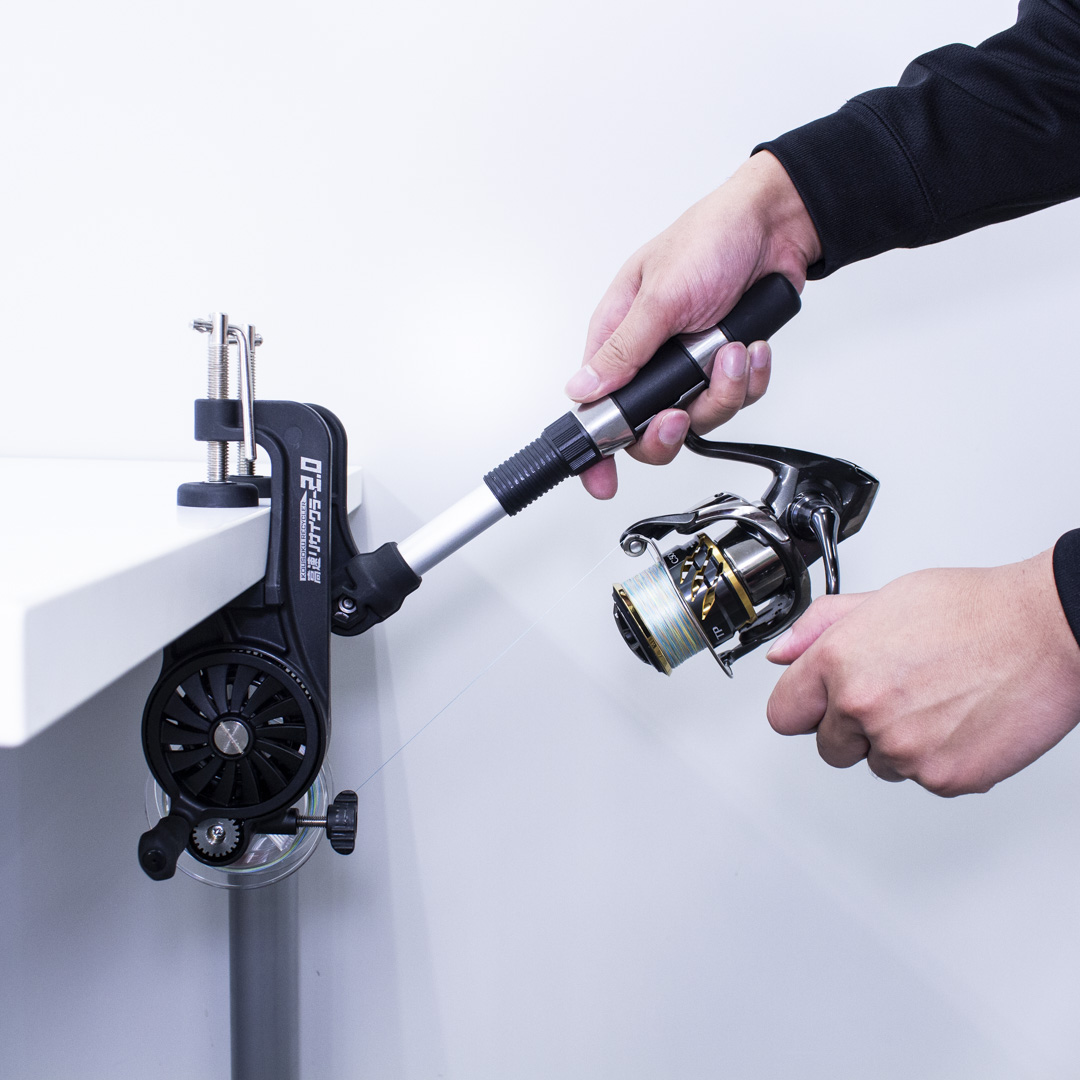

4. Spinning Reel-Compatible Design

For spinning reels, the seat can be flipped upside down for proper alignment.

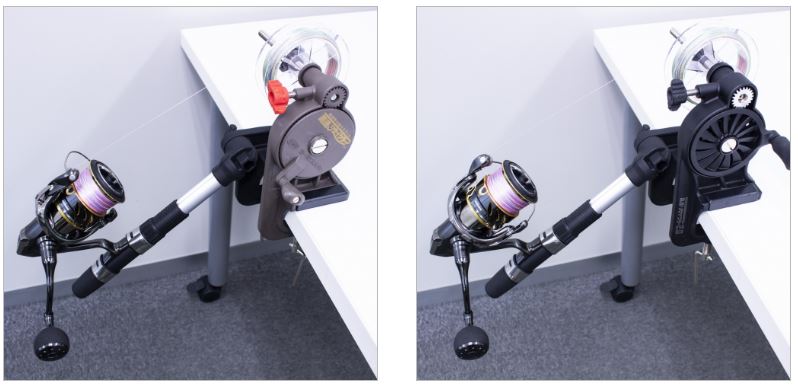

5. Compatible with Both Recycler Models

Works with both the original High-Speed Recycler and High-Speed Recycler 2.0.

HOW TO USE

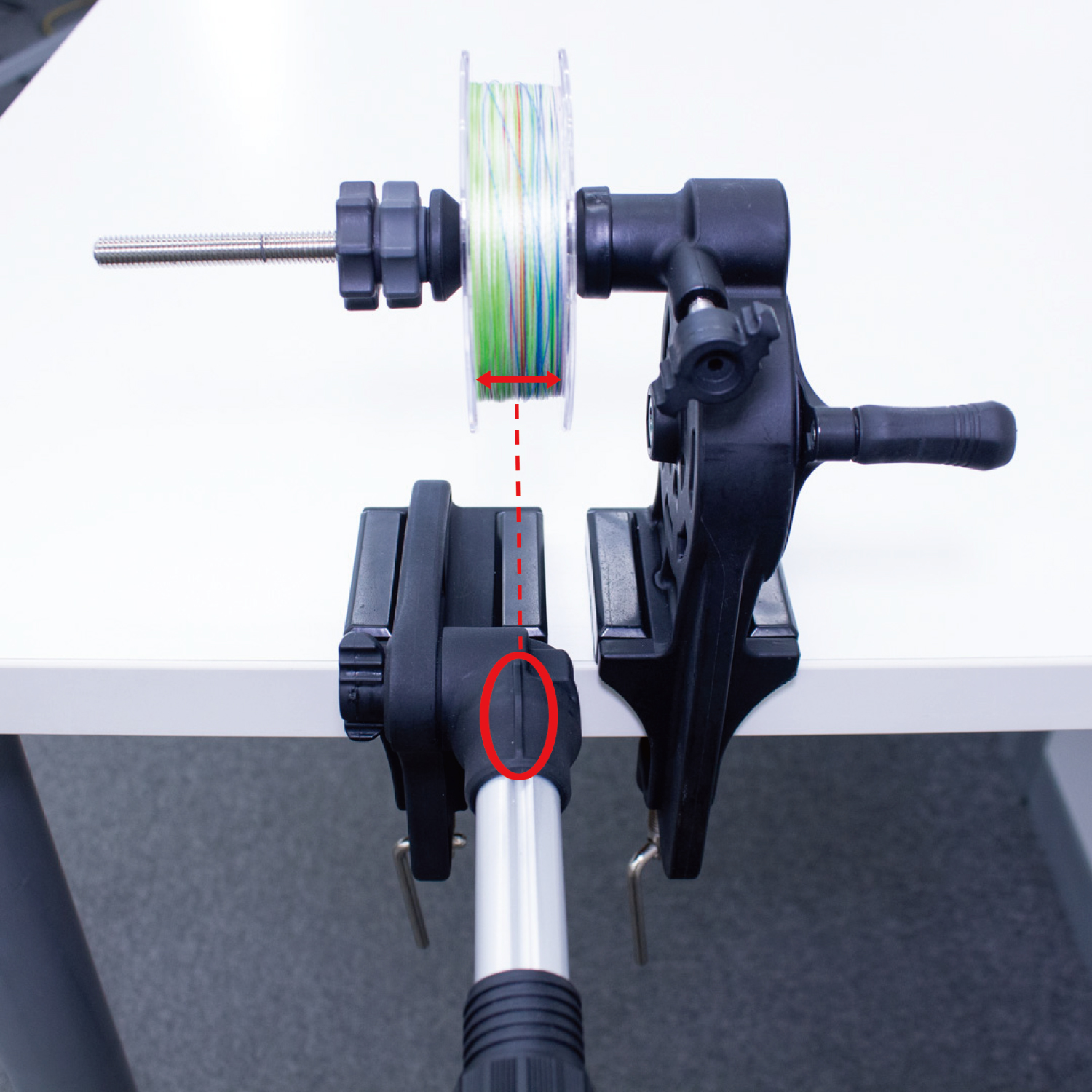

Step 1: Attach the Reel

Mount the line spool onto the High-Speed Recycler. Align the center of the spool with the center of the reel seat using the guide line, then fix the reel in place.

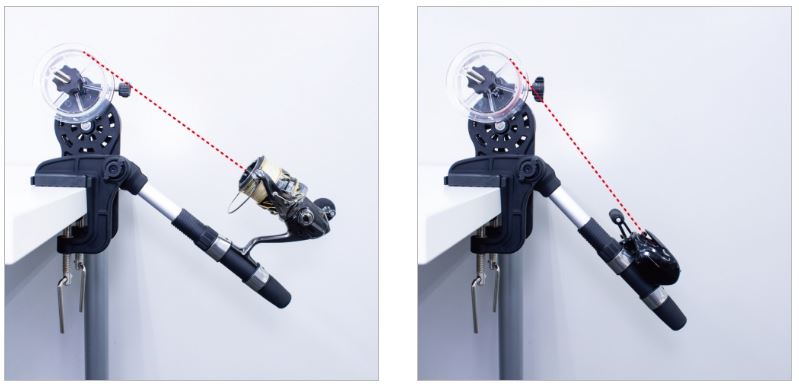

Step 2: Adjust the Angle

• For spinning reels: ensure the line output and reel axis are aligned.
• For baitcasting reels: align the level winder and line path as parallel as possible.

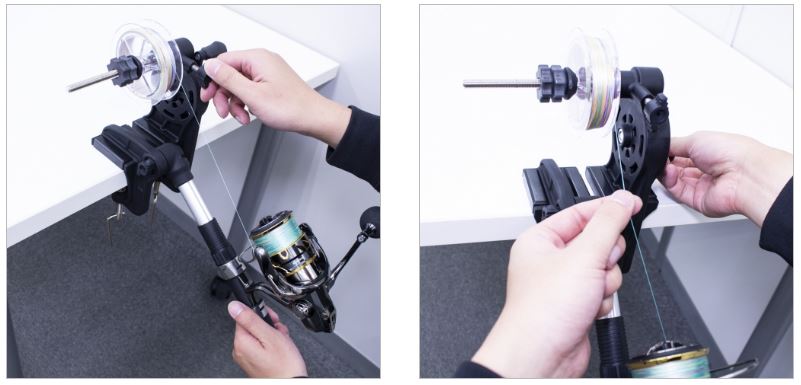

Step 3: Start Spooling

Adjust the line tension on the High-Speed Recycler and begin winding.
When winding onto an empty spool, guide the line lightly to prevent it from slipping.

CAUTIONS

• Do not apply excessive force to the reel seat — it may break.
• Angle adjustment screws and reel seat may loosen during use; check periodically.
• Improper reel seat positioning or angle may cause excessive friction or line damage.
• Avoid over-tightening with tools, as this may damage the reel foot.
• Rubber clamp pads may leave marks on table surfaces.
• For spare parts, visit our official website's "Parts & Repairs" section.
