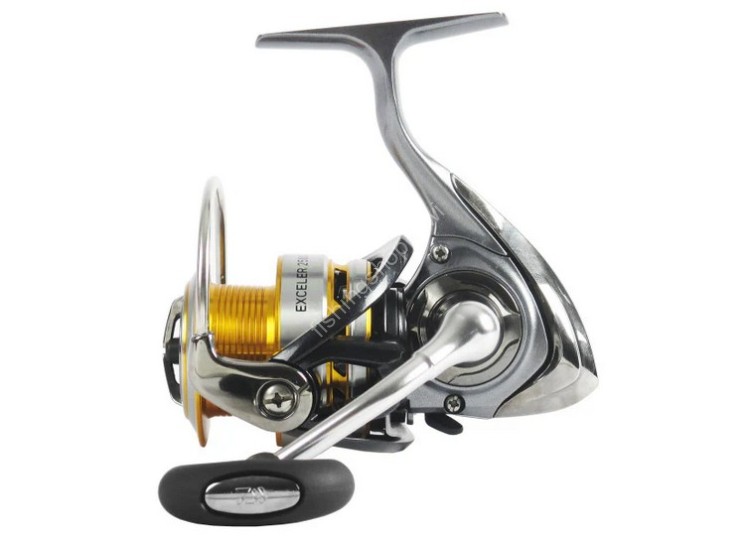

DAIWA 17 Exceler 3012H

Daiwa's unique waterproof and durable technology "Mag Seal" maintains the smooth rotation performance of the first use for a long time, and the new generation drag "ATD (Automatic Drag System)" that continues to work smoothly by following the fish's pull, the "Air Rotor" that is popular for its smooth rotation and winding sensitivity and advanced appearance, the pinion gear BB support structure that provides light rotation, and the high rigidity "Super Metal Body" are generously equipped with excellent elements of higher-end models. A high-value model that meets the needs of anglers who want a reel that is trouble-free and comfortable to use while keeping the price down. A rich lineup that includes freshwater bass and trout, bait fishing in the sea, offshore lures, and double handle models that are more conscious of SW lures.

Mag Seal
Daiwa's unique waterproof structure that shuts out seawater and dust by creating a magnetic oil wall in the gap between the body and the rotor. Since the body and rotor are non-contact, the initial rotation performance is maintained for a long time while maintaining the light and smooth rotation. Most of the causes of abnormal rotation noise are salt and foreign matter. Except for cases where the reel is accidentally dropped into water, the rate of abnormal rotation noise in Magsealed reels is significantly reduced. Moreover, the longer the reel is used, the greater the difference in the data becomes. This means that the longer it is used, the more effective it becomes. In other words, this is proof that the dustproof and waterproof capabilities of Magseal are at a very high level.

Air Rotor
An air rotor with a structure that can be called a rotor revolution. By distributing the load with an optimal rim structure with a unique shape, it has achieved a significant weight reduction with the same strength as before. The rotor balance has also been improved, resulting in responsive rotation.

ATD
A new generation drag system that continues to work while smoothly following the pull of the fish. It starts off smoother than before, so it is less likely to break the line, and it is less likely to cause the fish to feel uncomfortable, so it is less likely to move around unnecessarily. In addition, the action has a unique tenacity, so even with a low drag setting, the reel does not run out all at once, and the frequency of drag readjustment during the fight is reduced, allowing you to concentrate on the fight.

Super Metal Body
Super Metal = special aluminum material, has extremely high rigidity compared to resin bodies. The solid exterior does not warp even when a high load is applied, and the internal gear meshing does not go wrong, resulting in solid winding power and durability.

DS4 (Rotor material)
A fiber-reinforced special plastic created exclusively for reels using Daiwa's unique technology.

Aluminum spool
A lightweight metal spool with excellent rigidity.

Foldable aluminum machine-cut handle
A high-rigidity machine-cut handle that provides a stable winding feel. Foldable for excellent portability.

Digigear II
Daiwa's unique digital design technology "Digigear" has evolved even further. In order to realize the ideal tooth surface derived from digital analysis, ultra-high precision machine-cut technology is used, achieving tooth surface precision several times higher than that of forged gears. The drive gear is specially rubbing processed, and the pinion gear and drive gear are optimally balanced to improve durability.

ABS II
A spool structure that allows the line to be released without trouble, increasing casting distance. The large diameter and reverse taper of the winding surface make it difficult for the line to be pushed out from the front of the spool, dramatically reducing line troubles such as backlash. The large diameter spool also contributes to improved winding speed and drag performance. ABS II has revised the spool ring shape to reduce resistance when casting. Longer casting performance has been improved.

Cross wrap
A winding method with a large winding angle is used to cross-wind the line to prevent it from biting into the spool winding section or slipping. The reduction in line trouble is particularly noticeable when using thin threads or PE lines, and at the same time, it achieves a comfortable flight.

Air veil
A veil shape that dramatically reduces line tangle troubles by sending the line out to the line roller so that it flows. Furthermore, by making it hollow, we have achieved a significant increase in strength without changing the weight.

Twist Buster II
By tapering the line roller and rolling the line, this structure has significantly eliminated the line twist that occurs when the roller rotates, which was said to be the fate of spinning reels.

Rotor Brake
By braking the rotor rotation when the pail is opened, this mechanism prevents the handle from moving due to the shock of casting, causing the bail to suddenly flip.

Real Infinite Stopper
A special one-way clutch inside the body eliminates the reverse rattle of the rotor and handle, allowing for tight and high-precision winding.

Shower washable
Can be washed with running water. (After cleaning, maintenance according to the instruction manual is required)

Pinion gear BB support
A structure that firmly holds the pinion gear with ball bearings.
