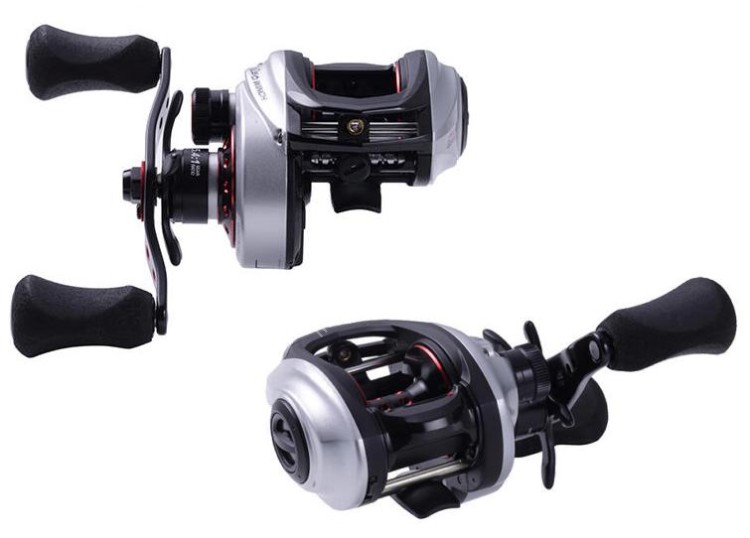

ABU GARCIA Revo Winch-L

Revo WINCH is a 5.4:1 low gear model that is indispensable for winding games such as swim jigs, Alabama rigs, and magnum cranks with strong winding resistance.
The large diameter brass gear and aluminum frame body are durable enough to withstand hard winding games, and the 95mm handle allows for a more dynamic winding feel.
The brake system uses the Infini Brake System to cover many fast moving lures with different air resistance and weights, allowing you to make long casts comfortably in a variety of situations.
A bait reel equipped with high power, sturdy large diameter brass gears, drag MAX 11kg, and power stack carbon drag close to full lock. Equipped with complete specifications for big lakes and big fish. Equipped with an IB brake that can handle any wind and can handle changing fields.

X-CRAFTIC frame and crank side plate
The aluminum frame is designed to be lightweight without compromising strength.
Materials are designed for tough use in saltwater.
The gearbox is also made of aluminum, allowing for stable retrieval.

Infini Brake System
The Infini Brake System combines a centrifugal brake with a spring mechanism in each block of the 6-point brake system and a high-performance magnetic brake system.
You can rest assured even when you are worried about line trouble, such as when there is a headwind. This is a brake system that allows you to take advantage of the benefits of both centrifugal brakes and magnetic brakes with one reel.

Power Stack Carbon Matrix Drag
Normally, when there are two drag washers, only two surfaces on one side are effective, but by making the outer diameter of the drag washer uneven, three surfaces are effective, one more than usual.
Not only does it provide maximum drag power, it also provides excellent sliding performance.

D2 Gear Design Large Diameter Brass Gear
Equipped with a strong large diameter brass gear, it has increased durability and strength, and the strong gear allows you to fight with big fish with confidence.

Dura Clutch
The operating parts have been thoroughly redesigned to make the clutch easier to disengage and more durable.

φ33mm aluminum machine cut deep spool
Ample line capacity to store 20lb-100m.
With extra thick line storage designed for large fish, you can fight without worrying about the amount of line you have.

Recessed reel foot
The split reel foot pushes the spool downward, making it possible to achieve a lower profile.
The height from the foot is approximately 40mm. It provides comfortable palming performance.

95mm crank handle + big flat EVA knob
The high-power 95mm handle features a large flat knob made of lightweight, easy-to-grip EVA material.

Interlocking side plates
Interlocking side plates prevent the brakes from falling and getting lost when adjusting the brakes.

C6 Palming Side Plate
The unique new material C6 Carbon is an engineering plastic reinforced with carbon fiber, and its rigidity is comparable to that of magnesium.
The adoption of this material has achieved significant weight reduction without sacrificing strength and durability.
