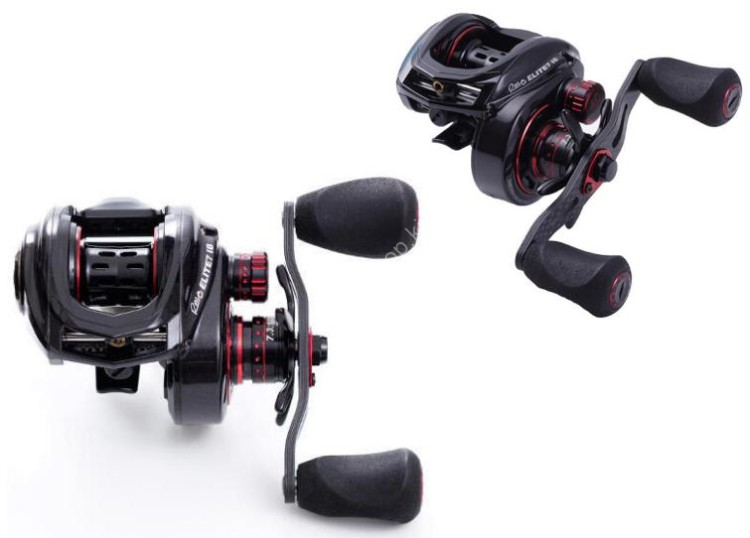

ABU GARCIA Revo Elite 7 IB-L

제품유형36282957640
ABU GARCIA Revo Elite 7 IB-L

개요

A baitcasting reel equipped with a high-power large-diameter gear and a power stack carbon drag with a drag of 10kg, close to full lock. Suitable for big lakes such as Lake Biwa and the Kasumi water system, as well as saltwater rockfish. Equipped with an IVCB-6L centrifugal brake that can be fine-tuned and externally adjusted.

Durametal Frame
The aluminum frame is designed to be lightweight without compromising strength.
The material is designed for tough use in saltwater.

Infini Brake System
The Infini Brake System combines a centrifugal brake with a spring mechanism in each block of the 6-point brake system and a high-performance magnetic brake system.
You can rest assured even when you are worried about line trouble, such as when there is a headwind. This brake system allows you to take advantage of the benefits of both centrifugal brakes and magnetic brakes in one reel.

Power Stack Carbon Matrix Drag
Normally, when there are two drag washers, only two surfaces on one side are effective, but by making the outer diameter of the drag washer uneven, three surfaces are effective, one more than usual.
Not only does it provide maximum drag power, it also provides excellent sliding performance.

D2 Gear Design Large Diameter Extra Super Duralumin Gear
The large diameter gear provides both stable winding speed and power.
In addition, the extra super duralumin is used, making it both lightweight and strong.

Dura Clutch
The operating parts have been thoroughly redesigned to make the clutch easier to disengage and more durable.

Ultra-lightweight φ33mm SLC spool made of super duralumin
The weight of the spool determines the performance of the InfiniSpool Design casting.
The spool has a thin wall design while ensuring a line capacity of 14lb-100m for large fish and 16lb-85m for large fish, and the weight has been thoroughly reduced while analyzing the strength. The synergistic effect with the InfiniBrake provides a different dimension of casting feel and casting performance.

Recessed reel foot
The split reel foot pushes the spool downward, making it possible to achieve a lower profile.
The height from the foot is approximately 40mm. It provides comfortable palming performance.

90mm crank carbon handle + big flat EVA knob
A lightweight, high-power 90mm handle with a large, flat knob made of lightweight, easy-to-grip EVA material.

Interlocking side plates
Interlocking side plates prevent the brakes from falling and getting lost when adjusting the brakes.

C6 Side Plates
The proprietary new material C6 Carbon is an engineering plastic reinforced with carbon fiber, and its rigidity is comparable to that of magnesium.
The use of this material allows for significant weight reduction without sacrificing strength and durability.

Salt Shield TM Pinion Bearing
By adopting a newly developed ball bearing with a water-repellent coating applied to the entire inside and outside, the salt jamming phenomenon that causes abnormal rotation noise has been greatly reduced.
We have succeeded in greatly improving the rotation feel and durability.
We adopted it on the pinion gear part, which is the part of a spinning reel that is most likely to retain salt crystals.

특징

릴 기어비
7.3
릴 무게
180 g
릴 스풀 깊이
12 lb/120 m , 14 lb/100 m , 16 lb/85 m
릴 베어링 # +1
9
릴 드래그 포스
10 킬로그램
릴 권선 길이
76 cm
상표
ABU GARCIA
₩259 124,9
36282957640
