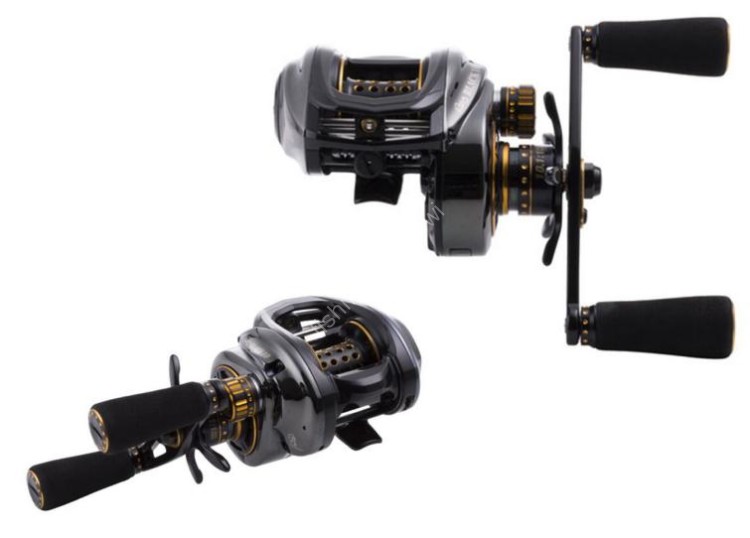

ABU GARCIA Revo Black 10

REVO's fastest gear ratio, 10.1:1. Over 105cm per one turn of the handle. High-speed fishing has arrived. Large diameter brass gear, power stack carbon drag that is close to full lock, and IB brake. For shallow water vibration and minnow speed fishing, top water pencil, frog, and Texas retrieval, and rockfish!

Durametal Frame
The aluminum frame is designed to be lightweight without compromising strength.
The material is designed for tough use in saltwater.

Durametal Side Plates
The side plates are made of titanium-coated aluminum.
Together with the main frame, they are made of full metal, allowing for distortion-free hooking and smooth retrieval.

Magtrax III Brake System
When casting a lure with high air resistance in windy open water, the lure tends to be pushed back by the wind from the moment you start to cast it, causing backlash.
Therefore, the Magtrax III brake system uses a magnet system that ensures that the brakes are effective from the moment the lure is released.
When shipped, it comes with two 1.5mm thick magnets and five 3mm thick magnets, which is Kimken's preferred setting.
Three other 1.5mm magnets are also included, and you can adjust the number to your liking.

Power Stack Carbon Matrix Drag
Normally, when there are two drag washers, only two surfaces on one side are effective, but by making the outer diameter of the drag washer uneven, it is effective on three surfaces, one more than usual.
Not only does it provide maximum drag force, it also provides excellent sliding performance.

D2 Gear Design Large Diameter Brass Gear
Equipped with a strong large diameter brass gear, it has increased durability and strength, and the strong gear allows you to fight with big fish with confidence.

Dura Clutch
The operating parts have been thoroughly redesigned to make the clutch easier to disengage and more durable.

φ33mm aluminum machine cut deep spool
Line capacity of 16lb-100m. An all-purpose setting for long-distance casting and close-range casting when targeting big fish.

Recessed reel foot
The split reel foot pushes the spool downward, making it possible to achieve a lower profile.
The height from the foot is approximately 40mm. It provides comfortable palming performance.

Double finger knob
The shape and length of the knob allow you to use two fingers to firmly transmit power to the reel, wind it up instantly, and hook it, allowing you to pull a big fish out of heavy cover without giving the fish the initiative.
Firmly fixed with a 4mm thick handle arm.

High-strength brass gear shaft & stainless steel handle knob shaft
Aluminum is often used for shafts to reduce weight.
Rather than aiming for lightness, we sought the ultimate in rigidity by using high-strength brass for the drive gear shaft and stainless steel for the handle knob shaft.

Super Free HPCR-BB
Reducing the size of ball bearings reduces resistance, but they are weaker when it comes to load bearing.
Abu Garcia has redesigned the ball track grooves of the bearings and succeeded in developing a ball bearing with low rotational resistance of the same size as before.
Improved low trajectory pitching and long throw performance.

Salt Shield TM Pinion Bearing
By adopting a newly developed ball bearing with a water-repellent coating applied to the entire inside and outside, the salt jamming phenomenon that causes abnormal rotation noise has been greatly reduced.
We have succeeded in greatly improving the rotation feel and durability.
We adopted it on the pinion gear part, which is the part of a spinning reel that is most likely to retain salt crystals.

Pinion gear shaft
By extending the pinion gear shaft and supporting its fulcrum with a ball bearing, it is now possible to distribute the load on the shaft during reeling and hooking across the entire body.
